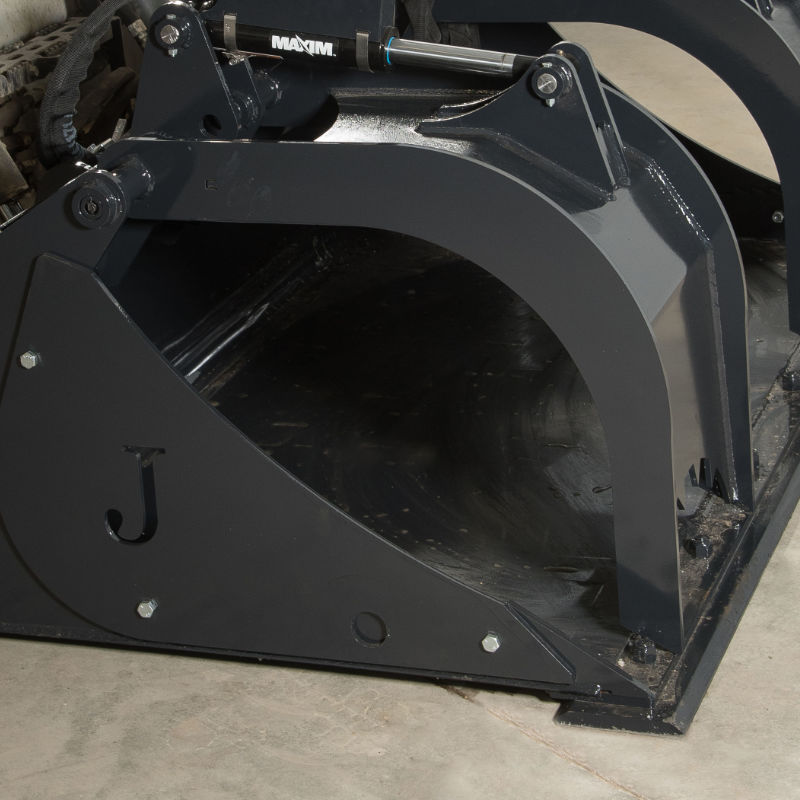

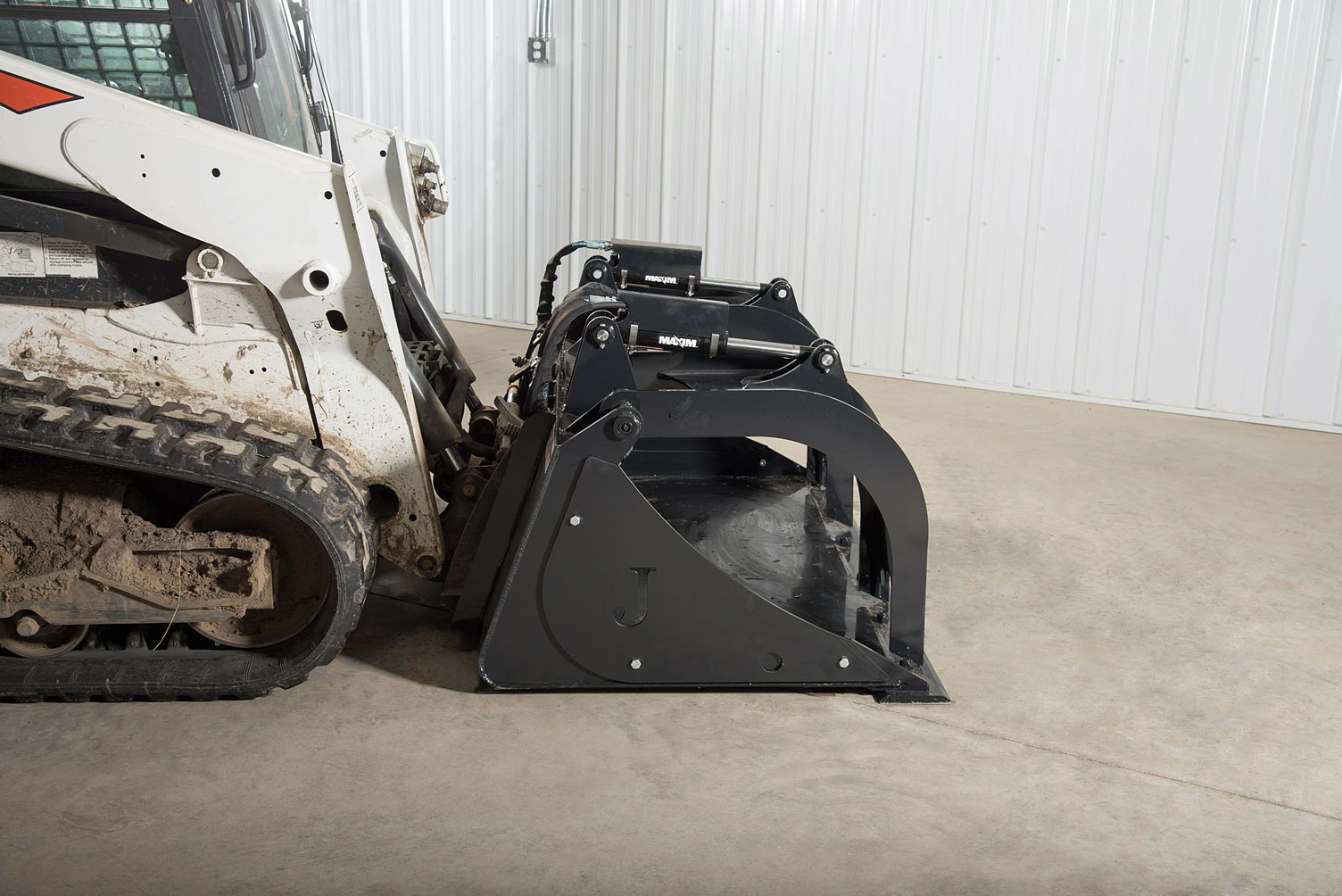

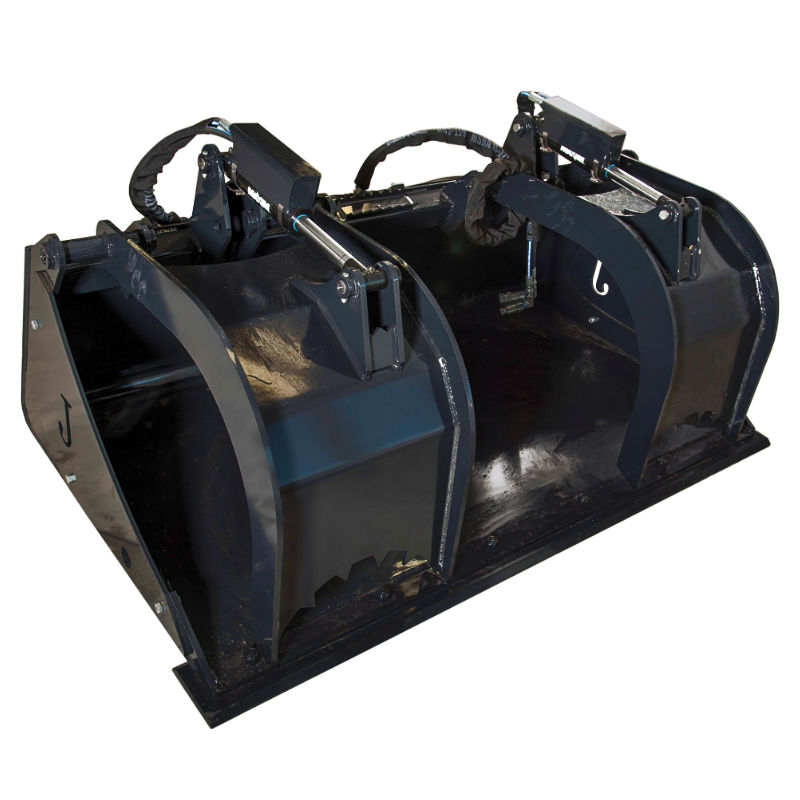

Jenkins HD Low Profile Grapple Bucket

Jenkins Iron and Steel Low Profile Grapple Bucket: Robust and Versatile Material Handling

The Jenkins Iron and Steel Low Profile Grapple Bucket is engineered for demanding skid steer applications, offering exceptional durability and versatility for a variety of tasks. Designed with a focus on strength and functionality, this grapple bucket is ideal for construction, landscaping, forestry, and agricultural work.

Key Features and Benefits:

• Heavy-Duty Construction:
  • Constructed from 1/4″ high-grade steel, ensuring longevity and resistance to wear and tear.
  • 1/2″ end caps provide added structural integrity, reinforcing the bucket’s edges.
  • Under strapped with ½” by 2 ½” solid steel bands that tie into and strengthen the mounting plate, for extreme durability.
• Removable Side Plates:
  • Bolt-on, removable side plates allow for easy passage of long debris such as logs, pipes, and other extended materials through the center of the grapples. This feature enhances the bucket’s versatility.
• Hardened Cutting Edge:
  • Equipped with a hardened 3/4″ bolt-on, replaceable cutting edge, providing superior digging and scraping performance and extending the bucket’s lifespan.
• Dual Cylinder Grapple System:
  • Dual cylinders operate synchronously, ensuring reliable and consistent grapple movement.
  • The grapples close to different levels, allowing for secure handling of uneven loads.
• Enhanced Durability and Maintenance:
  • All pivot points are fully grease-able, promoting smooth operation and reducing wear.
  • Cylinder covers protect the hydraulic cylinders from damage.
  • Enclosed solid grapples for maximum strength.
• Visibility and Versatility:
  • Optional visibility slots are available, providing improved sightlines for digging and brush work with the grapple claws raised.
• Complete Hydraulic System:
  • All Jenkins hydraulic attachments include hoses, cylinders, and flat face couplers for immediate use.
• Universal and Custom Mounts:
  • Compatible with universal skid steer quick attach systems.
  • Various skid steer loader mounts are available for non-universal systems. Please call for additional information.

Applications:

• Material handling
• Construction Demolition
• Debris cleanup
• Land clearing
• Forestry work
• Agricultural tasks
• Moving logs, and pipe.

The Jenkins Iron and Steel Low Profile Grapple Bucket is a powerful and reliable tool designed to maximize your skid steer’s capabilities. Its robust construction and versatile features make it an essential attachment for any demanding job site.

Call for additional size and attachment style options. (620)-802-1986
